Significance Weighted Principal Component Analysis (SWPCA)

python
Significance Weighted Principal Component Analysis (SWPCA) is a technique (1) developed to parse out the influence of a categorical variable that introduces variability in a certain dataset. This was originally intended to remove acquisition site variance in neuroimaging databases.
Author
Affiliation

F.J. Martinez-Murcia

Dpt. of Signal Theory, Networking and Communications. University of Granada & DaSCI.

Published

October 24, 2016

Significance Weighted Principal Component Analysis (SWPCA) is a technique developed to parse out the influence of a categorical variable that introduces variability in a certain dataset (Martinez-Murcia et al. 2017). This was originally intended to remove acquisition site variance in neuroimaging databases.

Download the code: Download

Use

To use the script to remove, navigate to the download dir, load the library (import swpca) into your environment and execute this command using the current dataset and acquisition site variables:

import swpca
dataset_rect, weights, A = swpca.swpca(dataset, site)

It will return the rectified dataset, to be used in subsequent analysis.

Algorithm Pipeline and Context

The main use of the SWPCA algorithm is within the context of common neuroimaging analysis, such as Voxel Based Morphometry (VBM) or a classification analysis. It is a preprocessing step, and as such, it is used just after any other preprocessing steps (such as normalization, etc), and before any further analysis. It provides rectified maps with the influence of the categorical variables removed, therefore decreasing the occurrence of false positives.

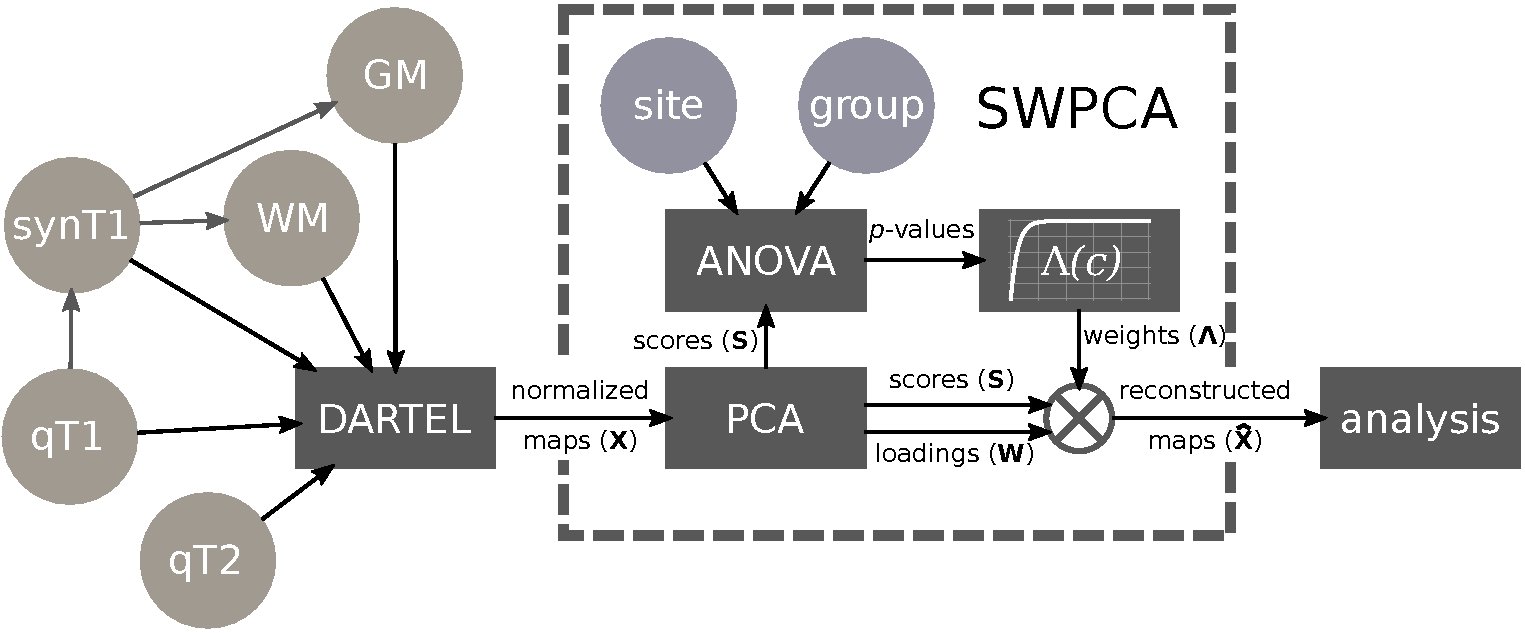

Schema of the SWPCA pipeline

References

Martinez-Murcia, Francisco Jesús, Meng-Chuan Lai, Juan Manuel Gorriz, Javier Ramirez, Adam MH Young, Sean CL Deoni, Christine Ecker, et al. 2017. “On the Brain Structure Heterogeneity of Autism: Parsing Out Acquisition Site Effects with Significance-Weighted Principal Component Analysis.” Human Brain Mapping 38 (3): 1208–23.
